Following is a presentation of the usage of available hardware (servodrives), via an architecture, for implementing Motion Function Blocks in Control Expert.

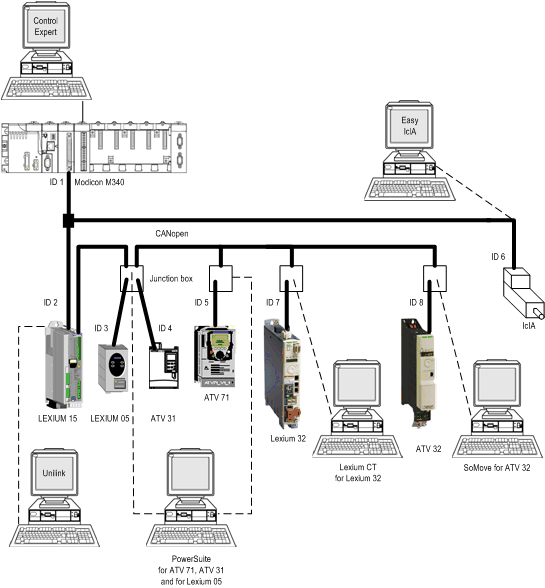

The following figure shows the architecture used in the application that includes all servodrives:
