Application Architecture with an ATV 31
(Original Document)
Overview
The proposed architecture is simple and designed to assimilate the implementation principles of motion control.
Other equipment can be added to this realistic architecture in order to manage several axes.
Illustration

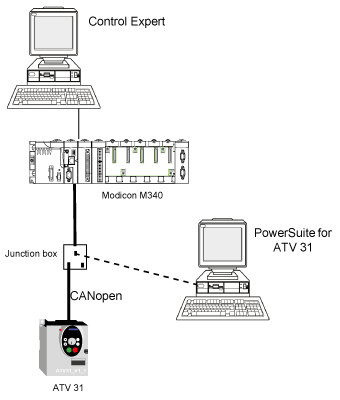

The following figure shows the architecture used in the application that includes an ATV 31.
